Product Description
Spilvac Elevator 200 Series.
Includes:
- Spillvac Vacuum Head (4 Models to choose from)
- 10mtr Anti Static Suction Hose.
- 2mtr Earth Wire and Clamp.
- Vacuum Wand & Floor tool
- Standard Paper Cartridge.
- Optional, Washable Ployester Filter or Certified HEPA Filter available.
Specification:
- Suction inlet and hose can be increased from 50mm to 102mm (4 inch).

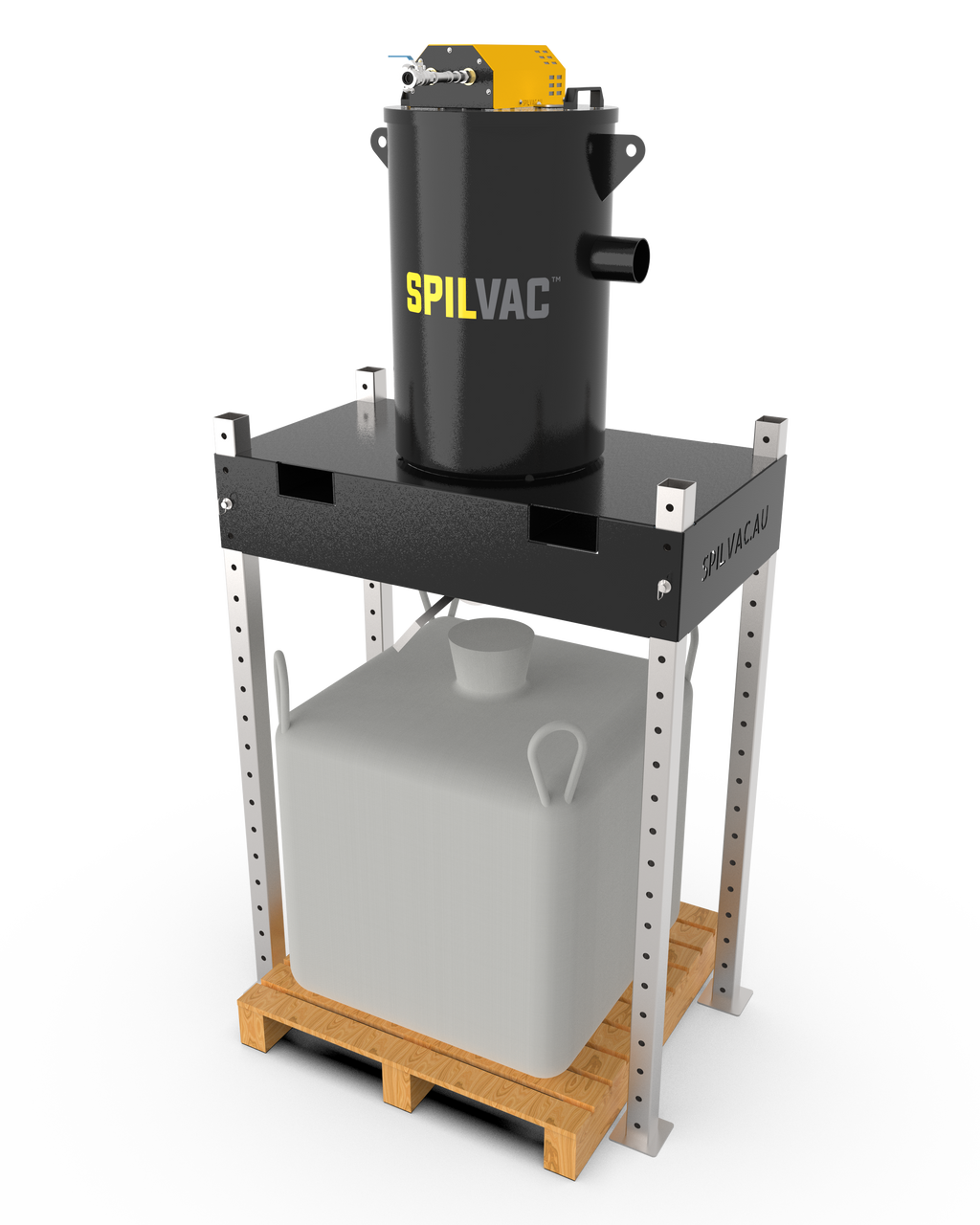

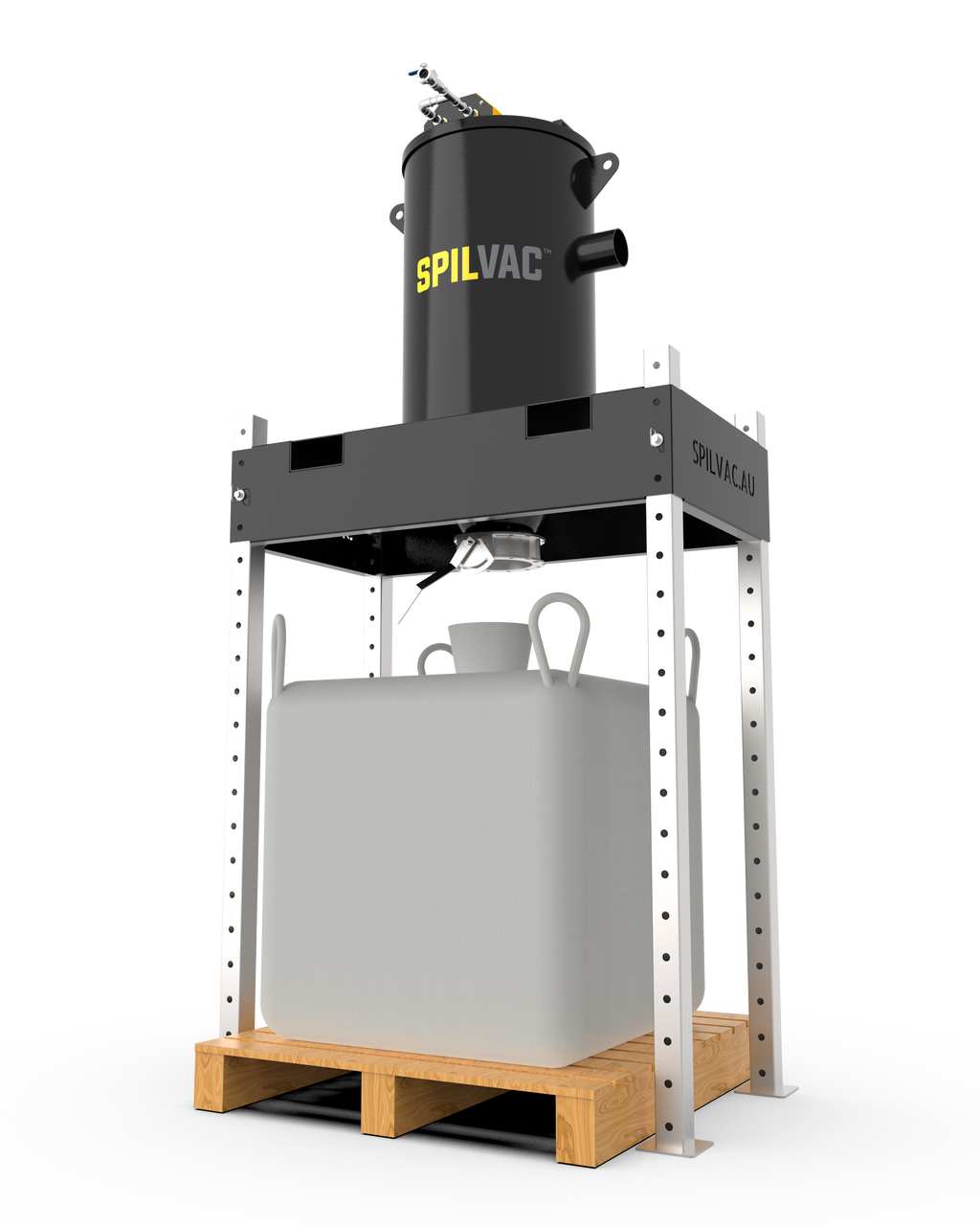

- Ajustable leg height design allows for a blast pot, drum, or bulk bag to be located under hopper.
- Hopper fitted with high quality manual butterfly valve for easy discharge of waste.
- Optional Pneumatic Rotary Valve available for automatic discharge of watse.
- Adjustable inHg vacuum available to custom suit your needs (see table below).
- Economical compressed air usage at 80psi using just 160cfm
- NEW - Electric unit under development
| Model | Air Consumption @ 80psi | Air Flow | Vacuum |
| Part No: | CFM - l/Min | CFM - L/min | inHg - Kpa |
| CV120HighAF | 100 - 2,831 | 288 - 8,155 | 9.8 - 33.18 |
| CV120HighVac | 100 - 2,831 | 165 - 4,672 | 15.5 - 52.48 |
| CV200HighAF | 200 - 4,530 | 250 - 7,079 | 14.4 - 48.76 |
| Cv200HighVac | 200 - 4,530 | 140 - 3,964 | 18.0 - 60.95 |
